ENVE - MOG GRAVEL BIKE - FOUNDATION BUILD

Reach out to an ENVE dealer or Wide Open Customer Service to discuss lead times and details for the ENVE MOG Foundation Bike. Need help finding a retailer? Please contact us.

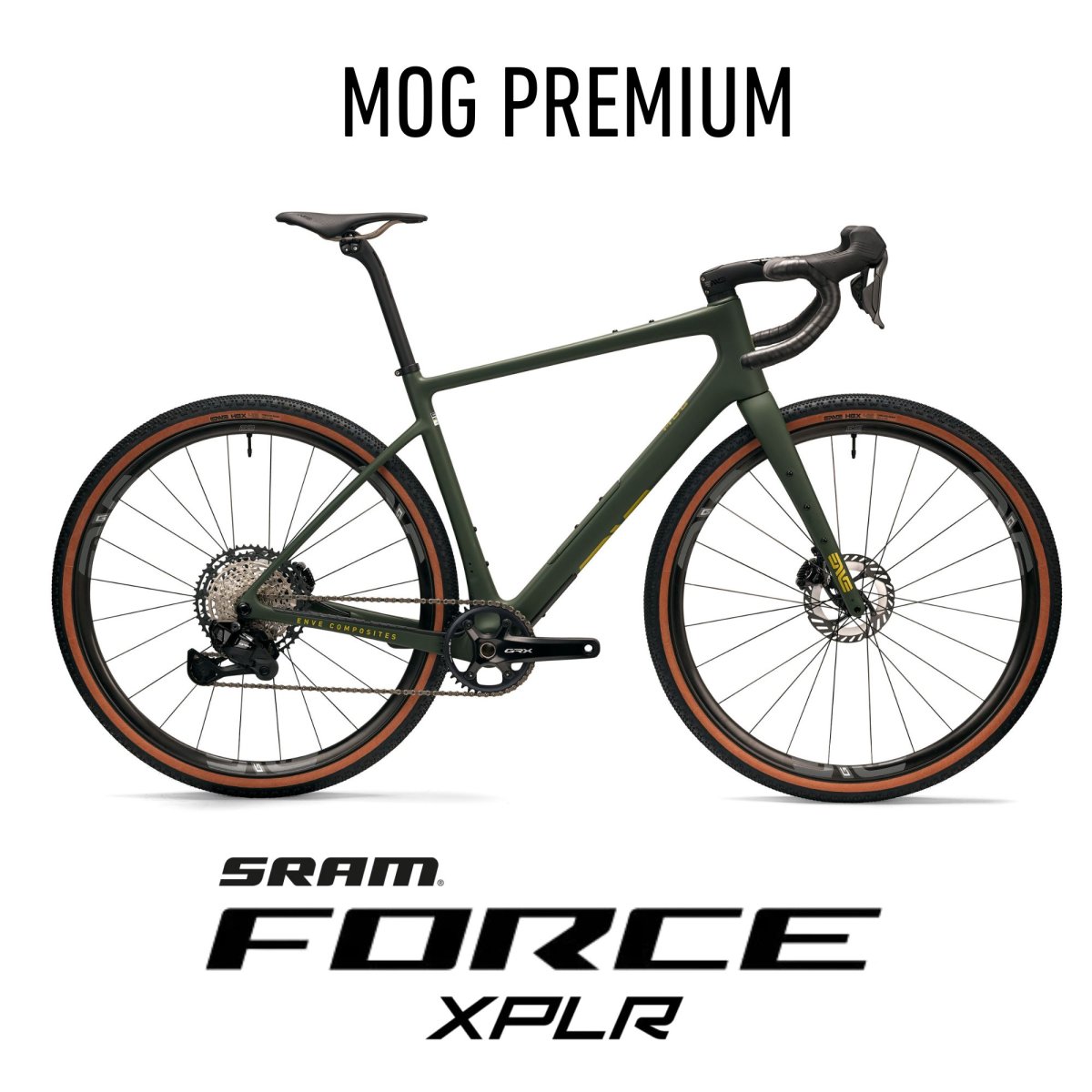

The MOG is a high-performance carbon gravel bike built for riders who push the boundaries of distance and rolling exploration. MOG is a noun, a verb, an acronym, and unequivocally a state of mind for those who embrace every challenge. There’s no road too long, no course too tough for those willing to MOG. Designed for racing and adventure, it delivers superior durability, generous tire clearance, and integrated storage for all your rides.

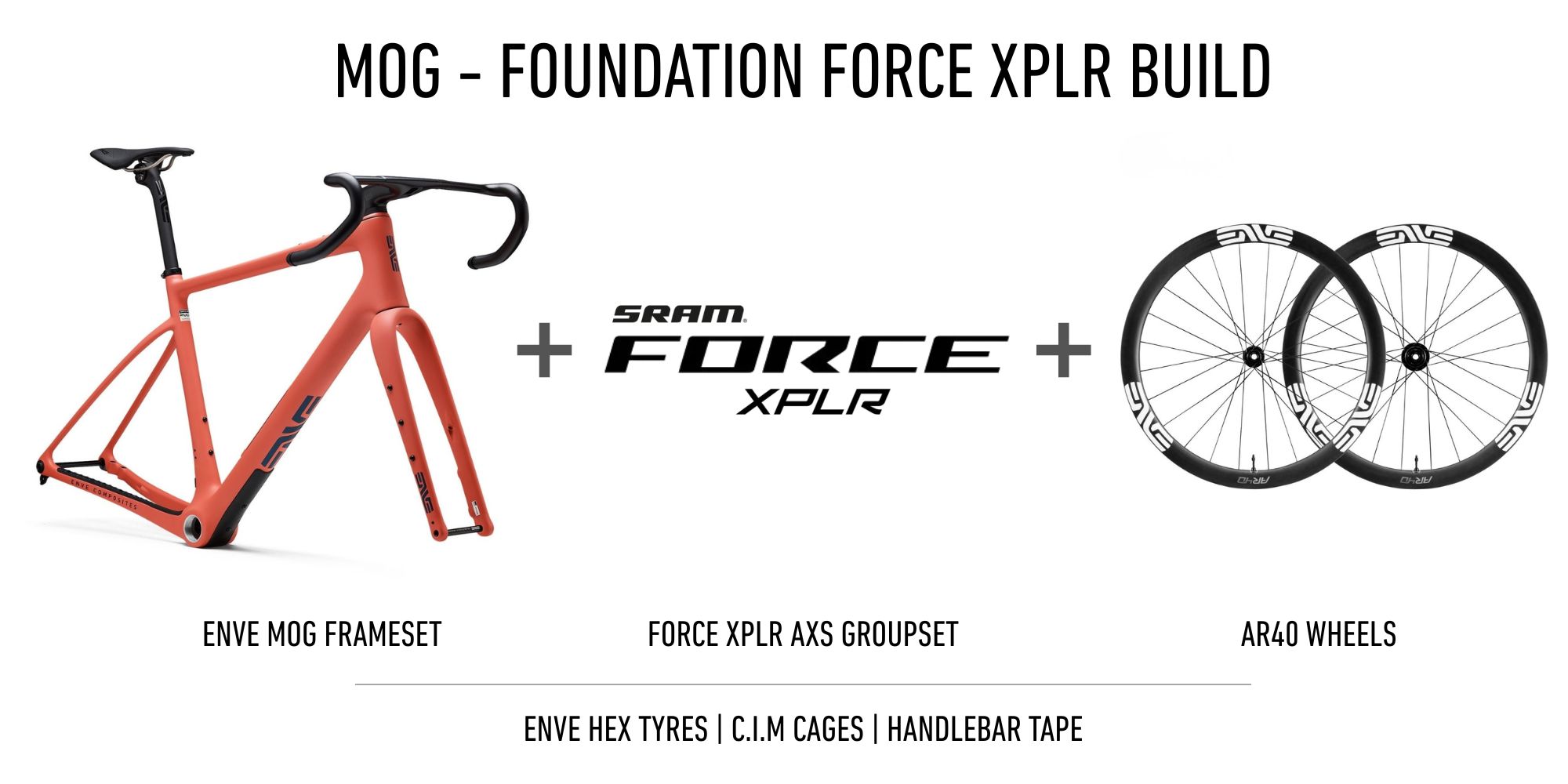

The Foundation Force XPLR Build is a complete MOG offering that doesn't pull any punches. The MOG chassis includes the SES AR One-Piece handlebar/stem, ENVE Seatpost and ENVE X Selle Italia SLR Ti saddle. SRAM's elite FORCE XPLR AXS groupset and ENVE AR40 wheels deliver reliable performance, complemented with ENVE C.I.M. Cages and Handlebar Tape for the perfect finishing touches.

SPECIFICATIONS - MOG PRO

FRAME AND FORK: ENVE MOG
WHEELSET: ENVE Foundation AR40
SEATPOST: ENVE 27.2 x 400mm
HANDLEBAR: SES AR One-Piece Handlebar
SADDLE: ENVE X SELLE ITALIA SLR Boost Titanium
GROUPSET: SRAM Force XPLR AXS
HANDLEBAR TAPE: ENVE Black
BOTTLE CAGES: ENVE C.I.M. Top-Loading
TYRES: ENVE Hex

ENVE - MOG GRAVEL BIKE - FOUNDATION BUILD

FRAME SPECIFICATIONS:

• Frame Material | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible.
• Fork Material | ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible.
• Frame Sizes (cm) | 49, 52, 54, 56, 58, 60
• Fork Rake | 57, 55, 53
• Fork Axle To Crown | 395mm.
• Frame Size-Fork Rake | 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53
• Frame Weight | 950g +/- 2% (Size 56, Painted, No Hardware).
• Headset | ENVE Integrated IS52/IS52 Internal Drop-In.
• Headset Bearing | 1.5" IS52 Upper and Lower.
• Seat Post Diameter | 27.2mm.
• BB Type | T47 Inboard Bearing.
• Brake Mount | Flat Mount.
• Brake Rotor Compatibility | F: 160/180, R: 140/160 (Adapters Required).
• Front Axle | 12x100 (Total Length: 122, TP:1.5, TL:15).
• Rear Axle | 12x142 (Total Length: 168, TP:1.0, TL:14).
• Minimum Tyre Size | 700 x 36c.
• Optimal Tyre Size | 700 x 40c-44c.
• Maximum Listed Tyre Clearance | 700 x 50c.
• Frame Routing | ENVE IN-Route Internal.
• Water Bottle Capacity | 3
• Top Tube Mounts | Yes
• Fender Mount Compatible | Yes
• Wheel Size | 700C (650b Not Recommended).
