ENVE - FRAY ROAD BIKE - PRO BUILD

Reach out to an ENVE dealer or Wide Open Customer Service to discuss lead times and details for the ENVE Fray Pro Bike. Need help finding a retailer? Please contact us.

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

The Fray embodies everything a modern all‑road bike should be: fast on pavement, composed on dirt, and built for riders who see every route as an open invitation. Its capability starts with generous tire clearance, accommodating up to a 700c x 40 mm tire to deliver confident handling whether you’re riding smooth tarmac, linking forgotten farm roads, or stretching a long ride into something more adventurous. Pair that with integrated frame storage that converts unused downtube space into practical, rattle-free capacity for tools and essentials, and you get a bike that stays clean, quiet, and ready for the unexpected without compromising its refined road aesthetics.

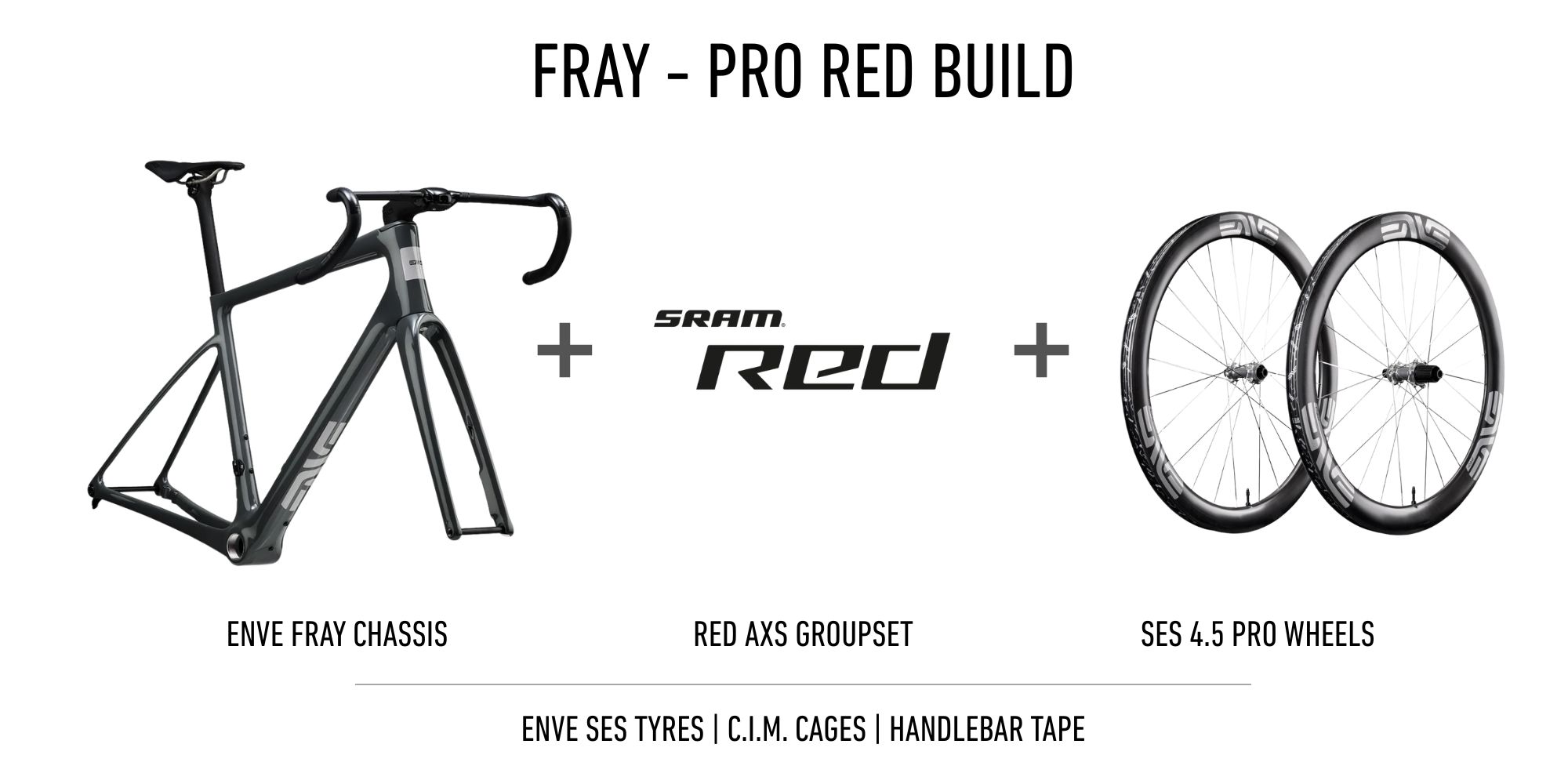

The Pro Build is our top-tier offering for the Fray Bike. The Fray chassis includes the SES Pro One-Piece handlebar/stem, ENVE Aero Seatpost and ENVE X Selle Italia SLR Ti saddle. SRAM's superlative RED AXS groupset and ENVE SES 4.5 Pro wheels offer category-dominating performance, complemented with ENVE C.I.M. Cages and Handlebar Tape for the perfect finishing touches.

SPECIFICATIONS - FRAY PRO

FRAME AND FORK: ENVE Fray
WHEELSET: ENVE SES 4.5 Pro
SEATPOST: ENVE Aero
HANDLEBAR: SES Pro One-Piece Handlebar
SADDLE: ENVE X SELLE ITALIA SLR Boost Titanium
GROUPSET: SRAM Red AXS
HANDLEBAR TAPE: ENVE Black
BOTTLE CAGES: ENVE C.I.M. Top-Loading
TYRES: ENVE SES Tubeless

ENVE - FRAY ROAD BIKE - PRO BUILD

FRAME SPECIFICATIONS:

• Frame Material | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
• Fork Material | ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
• Frame Sizes (cm) | 47, 50, 52, 54, 56, 58, 60
• Fork Rake | 55, 51, 47, 43
• Frame Size-Fork Rake | 47cm/55, 50cm/55, 52cm/51, 54cm/51, 56cm/47, 58cm/47, 60cm/43
• Frame Weight | 900g +/- 2% (Size 56, Painted, No Hardware)
• Headset | ENVE Integrated IS52/IS52 Internal Drop-In
• Headset Bearing | 1.5" IS52 Upper and Lower
• Seat Post Diameter | ENVE Aero
• BB Type | T47 Inboard Bearing
• Brake Mount | Flat Mount
• In-Frame Storage | Yes (2 Storage Bags included - 18.22 cubic cm each)
• Front Axle | 12x100 (Total Length: 122, TP:1.5, TL:15)
• Rear Axle | 12x142 (Total Length: 168, TP:1.0, TL:14)
• Minimum Tyre Size | 27mm
• Optimal Tyre Size | 31mm - 35mm
• Maximum Listed Tyre Clearance | 40mm (1x), 38mm (2x)
• Frame Routing | ENVE IN-Route Internal
• Water Bottle Capacity | 3
• Top Tube Mounts | Yes
• Fender Mount Compatible | Yes
• Wheel Size | 700C

COMPONENT COMPATIBILITY:

• Handlebar | ENVE SES AR, Compact or SES Aero Road | ENVE Integrated.
• Stem | ENVE Aero or IN-Route System (80, 90, 100, 110, 120, 130).
• Seatpost | ENVE Aero Seatpost only.

DRIVETRAIN COMPATIBILITY:

• Shimano Mechanical 1x | Yes
• Shimano Mechanical 2x | Yes
• Shimano Electronic Di2 (1x/2x) | Yes
• SRAM Mechanical 1x | Yes
• SRAM Mechanical 2x | No (Fray requires continuous housing for FD)
• SRAM AXS (1x/2x) | Yes
• Campy Mechanical 1x | Yes
• Campy Mechanical 2x | No (Fray requires continuous housing for FD)
• Campy Electronic EPS | Not Compatible
