ENVE - FRAY ROAD BIKE - FOUNDATION BUILD

Reach out to an ENVE dealer or Wide Open Customer Service to discuss lead times and details for the ENVE Fray Foundation Bike. Need help finding a retailer? Please contact us.

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

The Fray embodies everything a modern all‑road bike should be: fast on pavement, composed on dirt, and built for riders who see every route as an open invitation. Its capability starts with generous tire clearance, accommodating up to a 700c x 40 mm tire to deliver confident handling whether you’re riding smooth tarmac, linking forgotten farm roads, or stretching a long ride into something more adventurous. Pair that with integrated frame storage that converts unused downtube space into practical, rattle-free capacity for tools and essentials, and you get a bike that stays clean, quiet, and ready for the unexpected without compromising its refined road aesthetics.

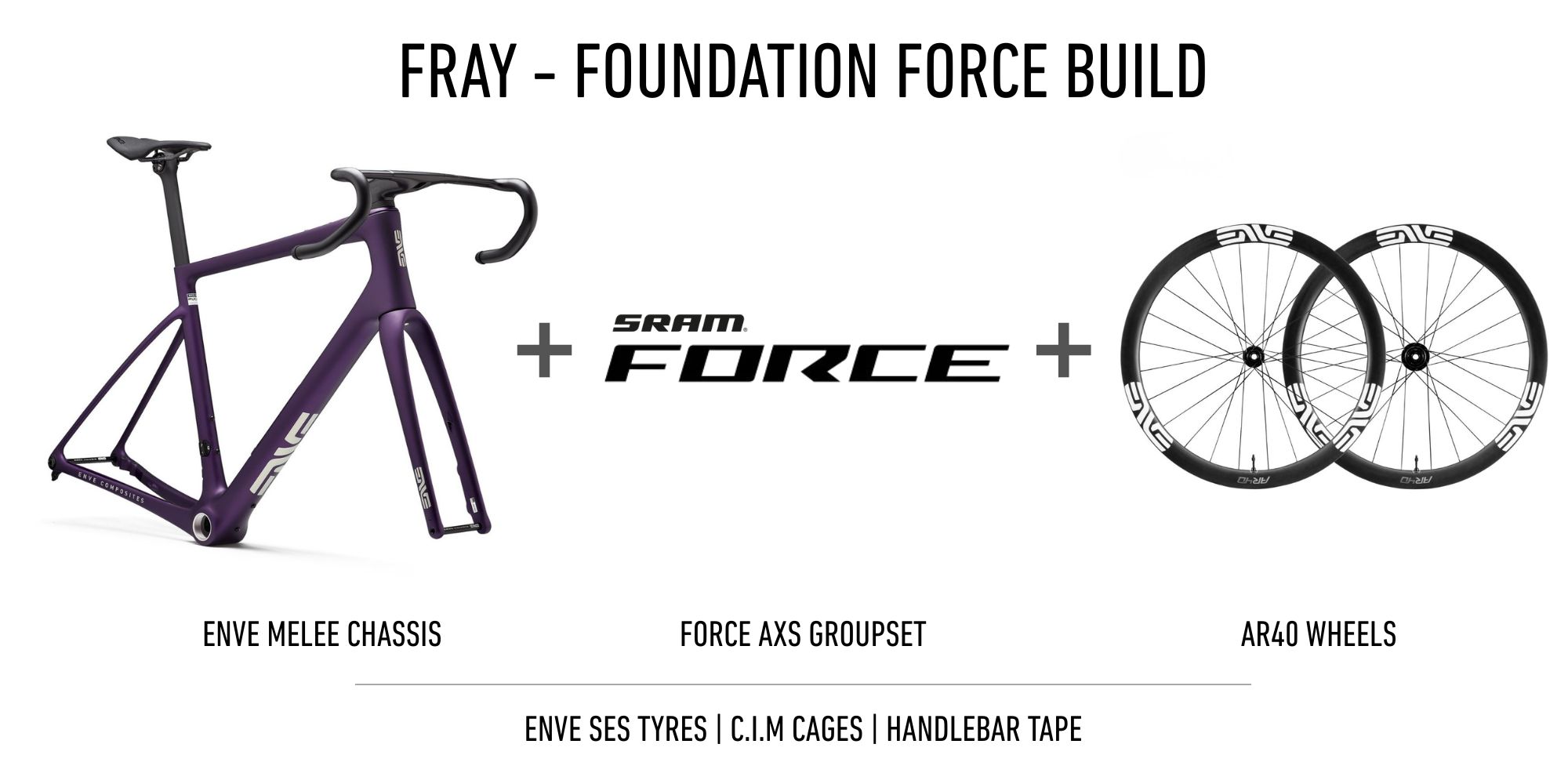

The Foundation Fray Bike is your dream machine for exploring any road. The Fray chassis includes the SES AR One-Piece handlebar/stem, ENVE Aero Seatpost and ENVE X Selle Italia SLR Ti saddle. SRAM's Force AXS groupset and ENVE AR40 wheels offer category-dominating performance, complemented with ENVE C.I.M. Cages and Handlebar Tape for the perfect finishing touches.

SPECIFICATIONS - FRAY FOUNDATION

FRAME AND FORK: ENVE Fray
WHEELSET: ENVE AR40
SEATPOST: ENVE Aero
HANDLEBAR: SES AR One-Piece Handlebar
SADDLE: ENVE X SELLE ITALIA SLR Boost Titanium
GROUPSET: SRAM Force AXS
HANDLEBAR TAPE: ENVE Black
BOTTLE CAGES: ENVE C.I.M. Top-Loading
TYRES: ENVE SES Tubeless

ENVE - FRAY ROAD BIKE - FOUNDATION BUILD

FRAME SPECIFICATIONS:

• Frame Material | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
• Fork Material | ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
• Frame Sizes (cm) | 47, 50, 52, 54, 56, 58, 60
• Fork Rake | 55, 51, 47, 43
• Frame Size-Fork Rake | 47cm/55, 50cm/55, 52cm/51, 54cm/51, 56cm/47, 58cm/47, 60cm/43
• Frame Weight | 900g +/- 2% (Size 56, Painted, No Hardware)
• Headset | ENVE Integrated IS52/IS52 Internal Drop-In
• Headset Bearing | 1.5" IS52 Upper and Lower
• Seat Post Diameter | ENVE Aero
• BB Type | T47 Inboard Bearing
• Brake Mount | Flat Mount
• In-Frame Storage | Yes (2 Storage Bags included - 18.22 cubic cm each)
• Front Axle | 12x100 (Total Length: 122, TP:1.5, TL:15)
• Rear Axle | 12x142 (Total Length: 168, TP:1.0, TL:14)
• Minimum Tyre Size | 27mm
• Optimal Tyre Size | 31mm - 35mm
• Maximum Listed Tyre Clearance | 40mm (1x), 38mm (2x)
• Frame Routing | ENVE IN-Route Internal
• Water Bottle Capacity | 3
• Top Tube Mounts | Yes
• Fender Mount Compatible | Yes
• Wheel Size | 700C

COMPONENT COMPATIBILITY:

• Handlebar | ENVE SES AR, Compact or SES Aero Road | ENVE Integrated.
• Stem | ENVE Aero or IN-Route System (80, 90, 100, 110, 120, 130).
• Seatpost | ENVE Aero Seatpost only.

DRIVETRAIN COMPATIBILITY:

• Shimano Mechanical 1x | Yes
• Shimano Mechanical 2x | Yes
• Shimano Electronic Di2 (1x/2x) | Yes
• SRAM Mechanical 1x | Yes
• SRAM Mechanical 2x | No (Fray requires continuous housing for FD)
• SRAM AXS (1x/2x) | Yes
• Campy Mechanical 1x | Yes
• Campy Mechanical 2x | No (Fray requires continuous housing for FD)
• Campy Electronic EPS | Not Compatible
