ENVE - MELEE ROAD BIKE - FOUNDATION BUILD

Reach out to an ENVE dealer or Wide Open Customer Service to discuss lead times and details for the ENVE Melee Foundation Bike. Need help finding a retailer? Please contact us.

The Melee is a modern road race bike engineered to provide the performance competitive riders demand. The Melee performs in all the areas that count – efficient power transmission, weight, aerodynamics and versatility.

Building on ENVE's foundation of Real World Fast aero technologies, the Melee has been designed to deliver aero efficiency that is on par with the fastest bikes on the road. The Melee features all the aerodynamic trappings expected to achieve top-of-class efficiency – minimal frontal area, Kamm-tailed tube shapes and full front-end integration. Additionally, the Melee’s tube shapes perfectly complement our SES™ rim profiles, harmonising airflow transitions from the wheel to frame surfaces to ensure a composed and stable ride experience in variable wind conditions.

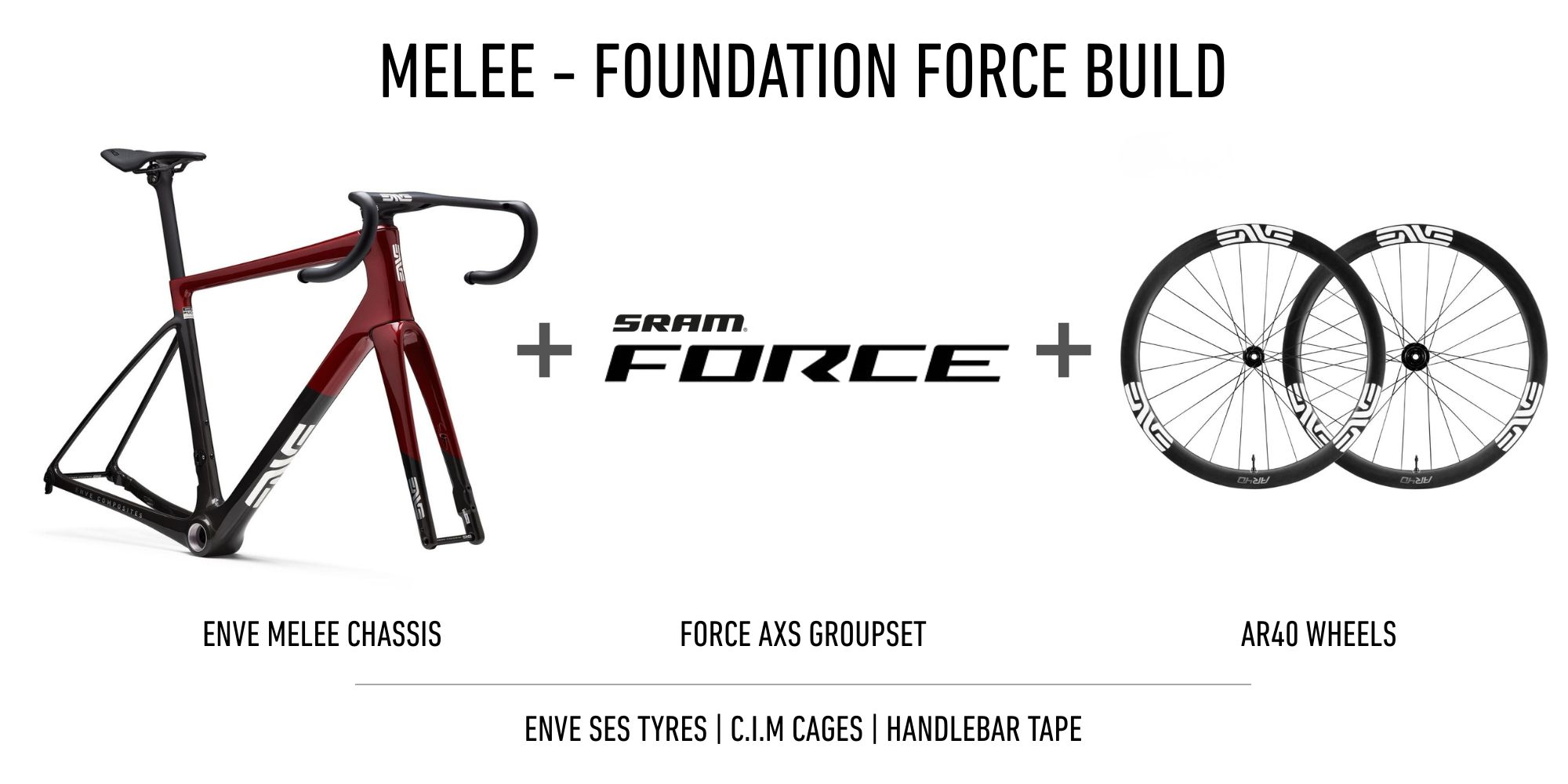

The Melee Foundation Bike is a powerhouse. The Melee chassis includes the SES AR One-Piece handlebar/stem, ENVE Aero Seatpost and ENVE X Selle Italia SLR Ti saddle. SRAM's Force AXS groupset and ENVE AR40 wheels offer exceptional performance, complemented with ENVE C.I.M. Cages and Handlebar Tape for the perfect finishing touches.

SPECIFICATIONS - MELEE FOUNDATION

FRAME AND FORK: ENVE Melee
WHEELSET: ENVE AR40
SEATPOST: ENVE Aero
HANDLEBAR: SES AR One-Piece Handlebar
SADDLE: ENVE X SELLE ITALIA SLR Boost Titanium
GROUPSET: SRAM Force AXS
HANDLEBAR TAPE: ENVE Black
BOTTLE CAGES: ENVE C.I.M. Top-Loading
TYRES: ENVE SES Tubeless

ENVE - MELEE ROAD BIKE - FOUNDATION BUILD

FRAME SPECIFICATIONS:

• Frame Material | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
• Fork Material | ENVE M.O.D Carbon 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
• Sizes (cm) | 47, 50, 52, 54, 56, 58, 60
• Fork Rake | 55, 51, 47, 43, 39
• Frame Size/Fork Rake | 47cm/55, 50cm/51, 52cm/47, 54cm/47, 56cm/43, 58cm/43, 60cm/39
• Frame Weight 850g +/- 2% (Size 56, Painted, No Hardware)
• Headset | ENVE Integrated IS52/IS52 Internal Drop-In
• Headset Bearing | 1.5″ IS52 Upper and Lower
• Seat Post Diameter | ENVE Aero
• BB Type | T47 Inboard Bearing
• Brake Mount | Flat Mount
• Front Axle | 12×100 (Total Length: 122, TP:1.5, TL:15)
• Rear Axle | 12×142 (Total Length: 168, TP:1.0, TL:14)
• Minimum Tire Size | 25mm
• Optimal Tire Size | 27-32mm
• Maximum Listed Tire Clearance | 35mm
• Frame Routing | Internal

COMPONENT COMPATIBILITY:

• Handlebar | ENVE SES AR, Compact or SES Aero Road | ENVE Integrated.
• Stem | ENVE Aero or IN-Route System (80, 90, 100, 110, 120, 130).
• Seatpost | ENVE Aero Seatpost only.

DRIVETRAIN COMPATIBILITY:

• Shimano Mechanical 1x | Yes
• Shimano Mechanical 2x | Yes
• Shimano Electronic Di2 (1x/2x) | Yes
• SRAM Mechanical 1x | Yes
• SRAM Mechanical 2x | No (Melee requires continuous housing for FD)
• SRAM AXS (1x/2x) | Yes
• Campy Mechanical 1x | Yes
• Campy Mechanical 2x | No (Melee requires continuous housing for FD)
• Campy Electronic EPS | Not Compatible
